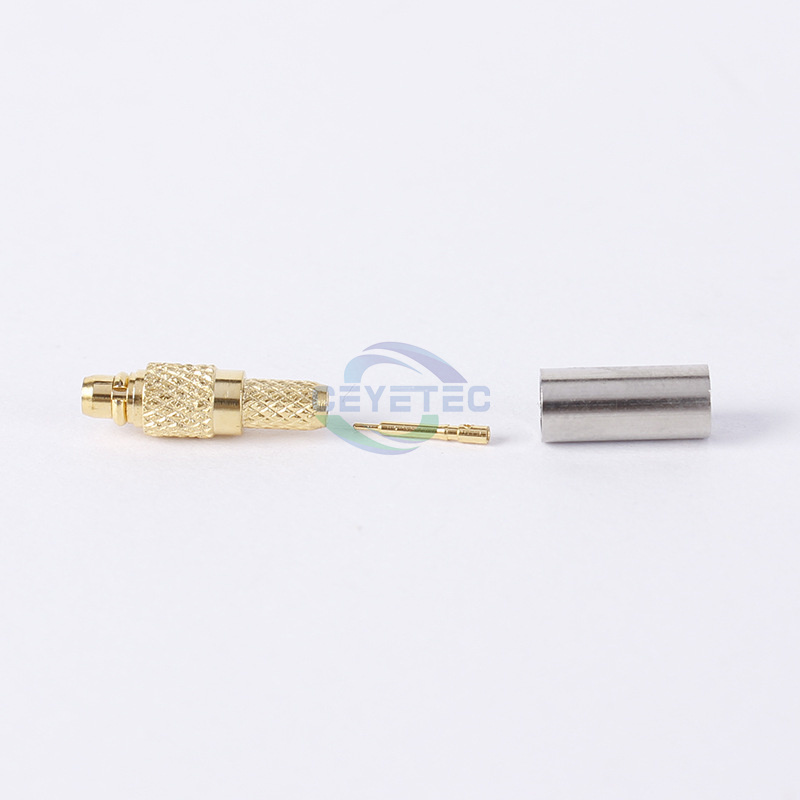

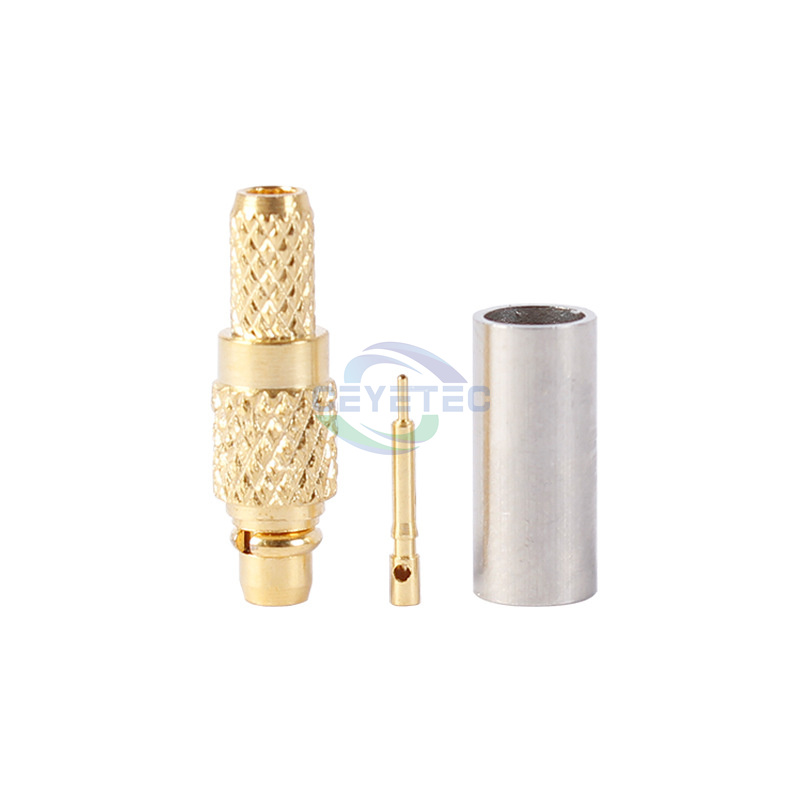

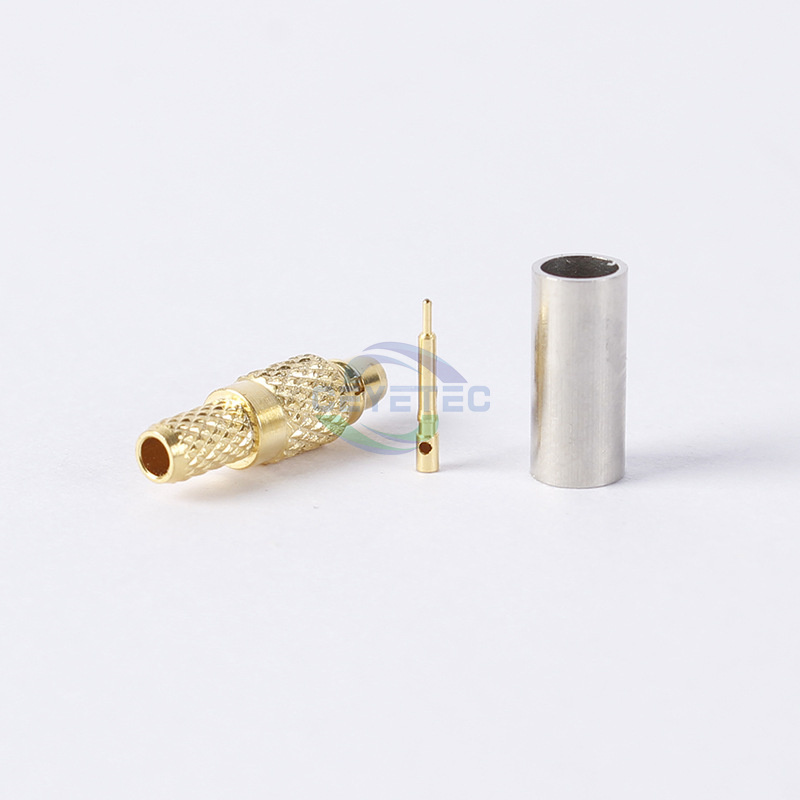

MMCX Male Crimp for RG179 LMR100 RG316 RG174
Attributes:
50ohm, MMCX Male Type, Male Pin, Straight, Cable Type, Brass, Gold Plating
Features:
Broadband performance with low reflection
High-quality solution at a low cost
Quick connect/disconnect snap-on mating reduces installation time
Available in straight and right angle plugs and printed circuit board connectors
50ohm, MMCX Male Type, Male Pin, Straight, Cable Type, Brass, Gold Plating
Features:
Broadband performance with low reflection
High-quality solution at a low cost
Quick connect/disconnect snap-on mating reduces installation time
Available in straight and right angle plugs and printed circuit board connectors
Basic Specifications
| MCX/MMCX Connectors Specifications | |
| Impedance | 50 Ohm |
| Frequency Range | DC - 6 GHz |
| Voltage Rating | 170 Volts RMS Continuous |
| Dielectric Withstanding Voltage | 500 VRMS Max |
| Center Contact Resistance | 10 mΩ Max |
| Outer Contact Resistance | 5 mΩ Max |
| Temperature Range | −40°C to +90°C |
| Mating Cycles | 500 Min |
| Coupling Mechanism | Push-On |
Shipment
Loading Port: Shenzhen, China
Sample Delivery: 3-5days after order confirmed
Mass Production Delivery:10-15 days after order confirmed
The excellent after-sale service team provide to you with broader service platform. Please contact us anytime, if you have any questions or requirements.
Payment
Payment Term: Bank Transfer, Alipay, PayPal, Credit Card.
Packing
