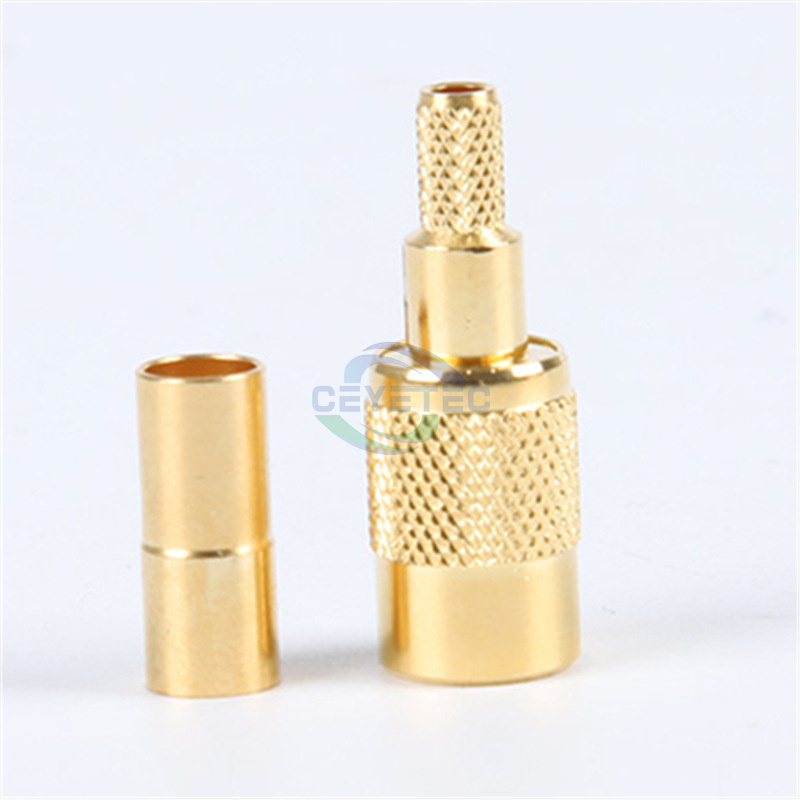

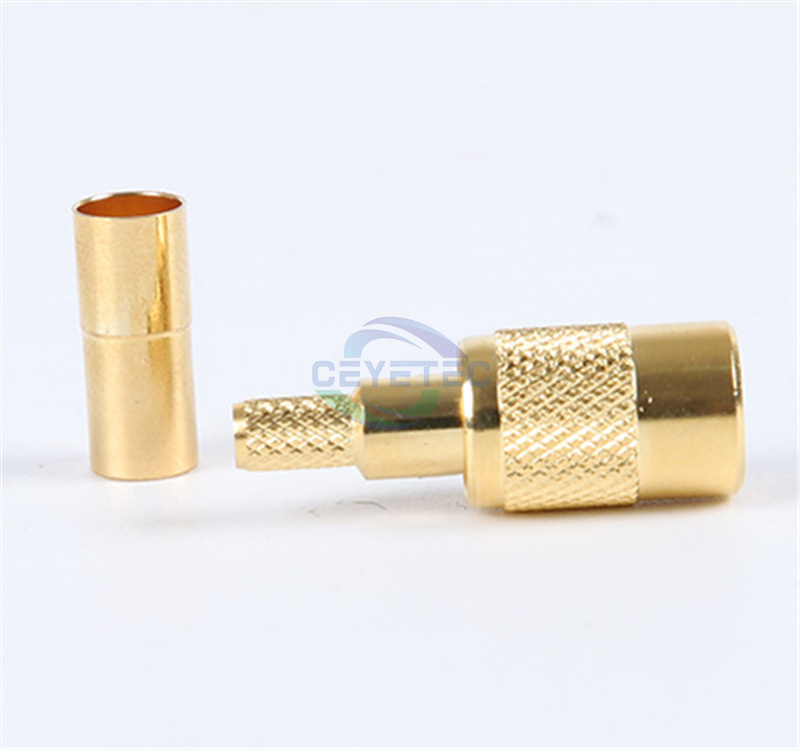

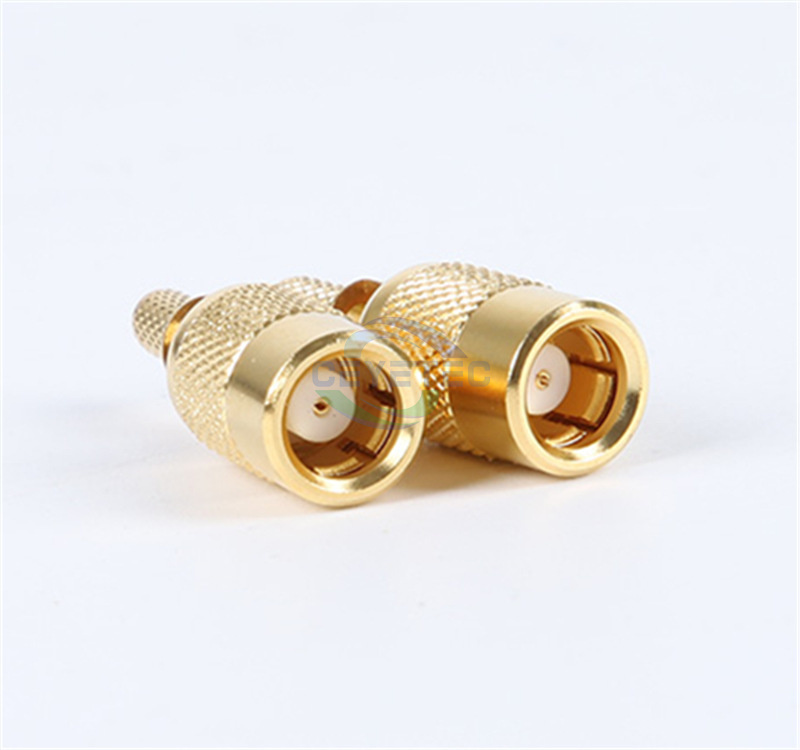

SMB Female Plug Crimp RF Connector for RG316 RG174 Cable
Attributes:
50ohm, Smb Female Type, Female Pin, Right Angle, Cable Type, Brass, Gold Plating
Features：
Various plating options in nickel, gold, and tin lead
Quick connect/disconnect snap on mating reduces installation time
SMB PCB slide-on plug and jack allows board-to-board mounting with a low insertion force
50ohm, Smb Female Type, Female Pin, Right Angle, Cable Type, Brass, Gold Plating
Features：
Various plating options in nickel, gold, and tin lead
Quick connect/disconnect snap on mating reduces installation time
SMB PCB slide-on plug and jack allows board-to-board mounting with a low insertion force
Basic Specifications
| SMB Connectors Specifications | |
| Impedance | 50 Ohm |
| Frequency Range | DC - 4 GHz (DC - 10 GHz on Extended Range Designs) |
| Voltage Rating | 335 Volts RMS Continuous |
| Dielectric Withstanding Voltage | 1000 VRMS Max |
| Insulation Resistance | 1000 MΩ Min |
| Center Contact Resistance | 6 mΩ Max |
| Outer Contact Resistance | 1 mΩ Max |
| RF Leakage | -120 dB Max (DC - 3 GHz) |
| Temperature Range | −65°C to +165°C |
| Mating Cycles | 500 Min |
| Coupling Mechanism | Snap-On |
Shipment
Loading Port: Shenzhen, China
Sample Delivery: 3-5days after order confirmed
Mass Production Delivery:10-15 days after order confirmed
The excellent after-sale service team provide to you with broader service platform. Please contact us anytime, if you have any questions or requirements.
Payment
Payment Term: Bank Transfer, Alipay, PayPal, Credit Card.
Packing
