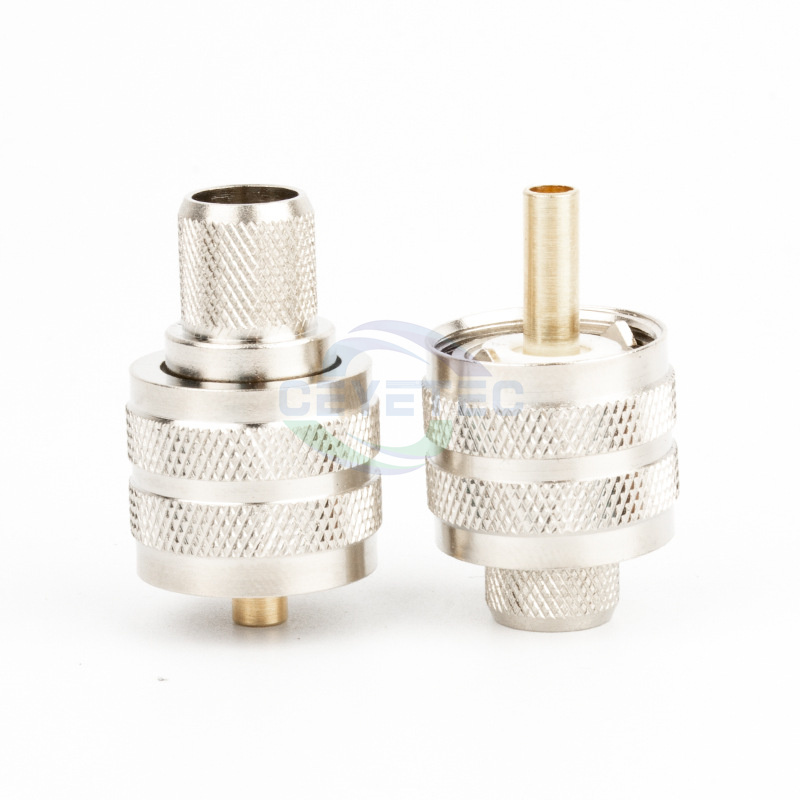

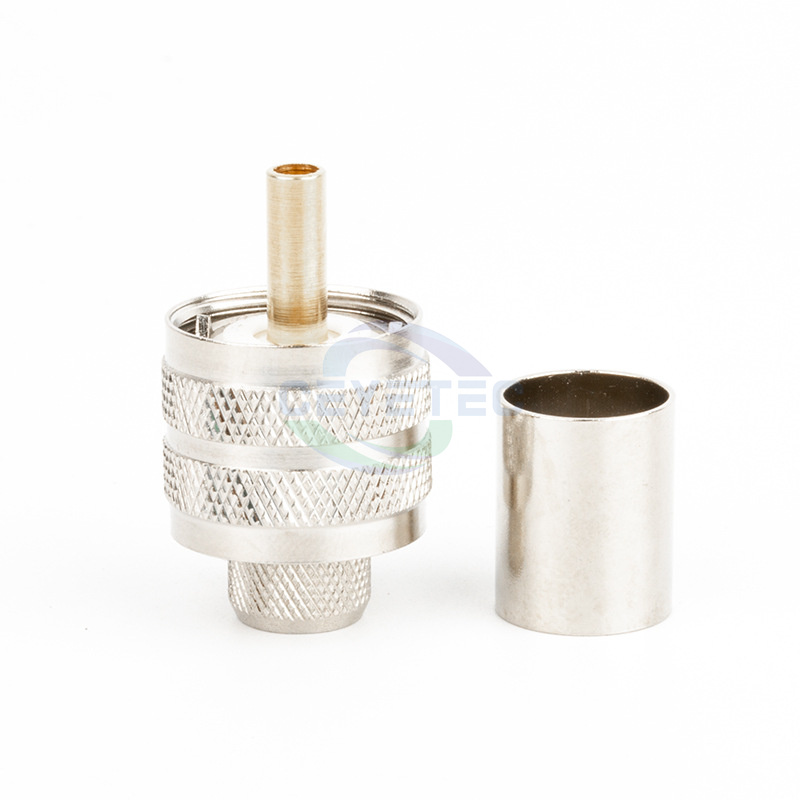

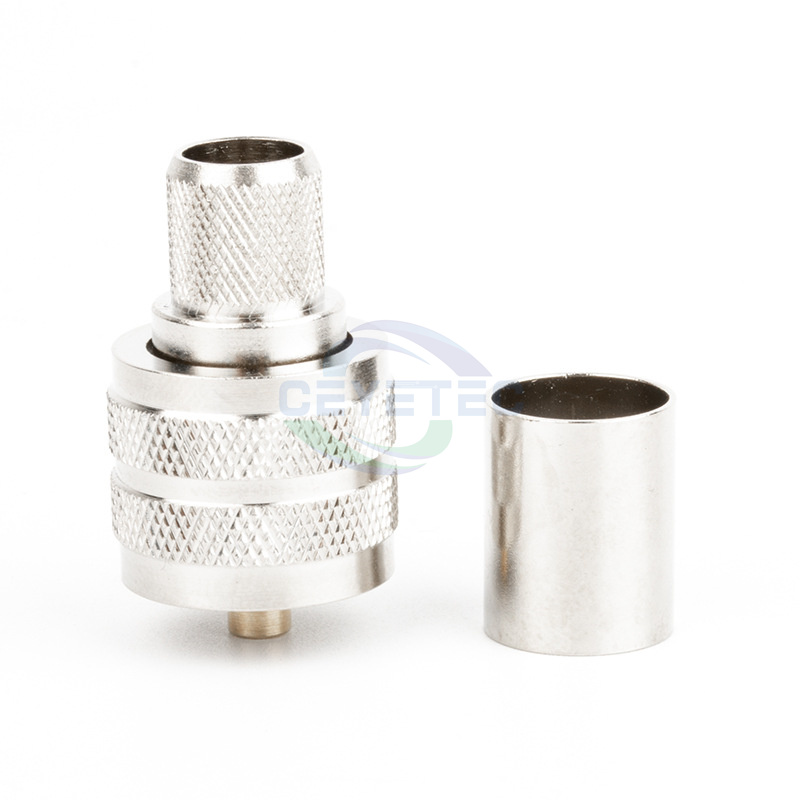

UHF Male Connector for RG6 5D-FB
Attributes:
UHF Female Type, Male Pin, Straight, Cable Type, Brass, Nickel Plating
Features:
Optional reducing adapters accommodate a wide range of popular coaxial cables
Solder termination types require no special assembly tools
Crimp termination types provide a lower cost installation method
Large-size threaded coupling is a rugged design
Non-demanding specifications and low cost
UHF Female Type, Male Pin, Straight, Cable Type, Brass, Nickel Plating
Features:
Optional reducing adapters accommodate a wide range of popular coaxial cables
Solder termination types require no special assembly tools
Crimp termination types provide a lower cost installation method
Large-size threaded coupling is a rugged design
Non-demanding specifications and low cost
Basic Specifications
| UHF Connectors Specifications | |
| Impedance | Non-Constant |
| Frequency Range | DC - 300 MHz (DC - 1 GHz on Extended Range Designs) |
| Voltage Rating | 500 Volts RMS Max Continuous |
| Dielectric Withstanding Voltage | 1500 VRMS Max |
| Insulation Resistance | 5000 MΩ Min |
| Power Handling | 500 W @ 100 MHz @ 25ºC |
| Temperature Range | −55°C to +149°C |
| Mating Cycles | 500 Min |
| Coupling Mechanism | Threaded |
| Interface Specification | Hand Tighten |
